제품 상세정보
원래 장소: 중국 광동
브랜드 이름: Shareway
인증: CE UL RoHS ISO9001:2008
모델 번호: ZD2020-AE
지불과 운송 용어
최소 주문 수량: 100PCS
가격: Supportive
포장 세부 사항: 전체 릴 당 500 부품
배달 시간: 주식 또는 3-4 주
지불 조건: TT, PayPal
공급 능력: 5000k.pcs/월
제품명: |
산업용 애플리케이션을 위한 절연형 벅 변압기 ZD2020-AE |
용법: |
산업용으로 |
산: |
표면 실장 |
제품 유형 :: |
고립된 버크 트랜스포머 |
작동 온도 범위: |
-40 ° C ~ +70 ° C |
패키지: |
테이프 / 릴 |
제품명: |
산업용 애플리케이션을 위한 절연형 벅 변압기 ZD2020-AE |
용법: |
산업용으로 |
산: |
표면 실장 |
제품 유형 :: |
고립된 버크 트랜스포머 |
작동 온도 범위: |
-40 ° C ~ +70 ° C |
패키지: |
테이프 / 릴 |
Isolated Buck Transformer for industrial application ZD2020-AE
Features:
Electrical Parameters @ 25° C
| Part number |
Power (W) |
Inductance at 0 A ±10% (µH) |
DCR max (Ohms) pri |
DCR max (Ohms) aux |
DCR max (Ohms) sec |
Leakage inductance max (µH) |
|
Isolation (Vrms) |
Isat (A) |
Output |
| ZD2020-AED | 5 | 20 | 0.138 | 0.426 | 0.175 | 0.725 | 1 : 1.56 : 0.44 | 1500 | 1.9 | 20 V, 0.20 A -5 V, 0.20 A |
Shape and Dimensions:

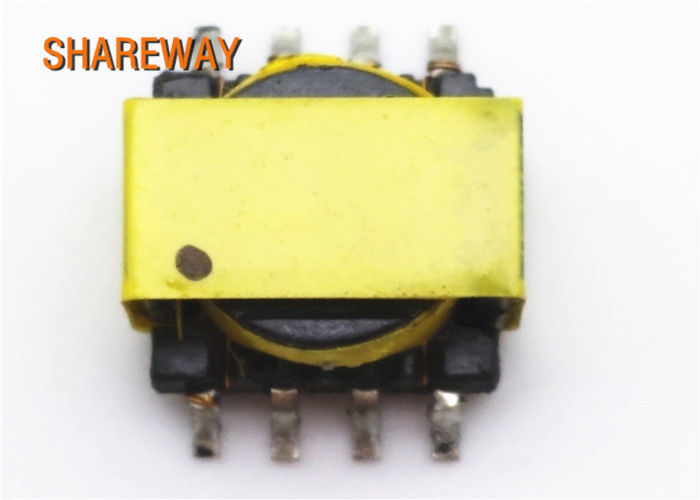

Product picture:
Isolated Buck Transformer for industrial application ZD2020-AE
