제품 상세정보
원래 장소: 중국 광둥성
브랜드 이름: Shareway
인증: CE UL RoHS ISO9001:2008
모델 번호: WA8417-AL
지불과 운송 용어
최소 주문 수량: 100개
가격: Supportive
포장 세부 사항: 전체 릴 당 500 부품
배달 시간: 주식 또는 3-4 주
지불 조건: TT,페이팔
공급 능력: 5000K.PCS/월
제품명: |
절연형 전원 공급 장치용 표면 실장 WA8417-AL 플라이벅 변압기 |
용법: |
절연 전원 장치를 위해 |
산: |
표면 실장 |
제품 유형:: |
SMPS 플라이백 변압기 |
작동 온도 범위: |
-40°C ~ +70°C |
패키지: |
테이프 / 릴 |
제품명: |
절연형 전원 공급 장치용 표면 실장 WA8417-AL 플라이벅 변압기 |
용법: |
절연 전원 장치를 위해 |
산: |
표면 실장 |
제품 유형:: |
SMPS 플라이백 변압기 |
작동 온도 범위: |
-40°C ~ +70°C |
패키지: |
테이프 / 릴 |
Surface Mount WA8417-AL Fly-Buck Transformer for Isolated Power Supply
Features:
| Part number |
Input voltage (V) |
Inductance ±10% (µH) |
DCR max (mOhms) pri
|
DCR max (mOhms) sec
|
Leakage inductance max (µH)
|
Turns ratio pri:sec
|
Isolation (Vrms) |
Isat (A)
|
Output |
| WA8417-AL | 8 – 28 | 47.0 | 0.185 | 0.37 | 0.42 | 1 : 2 | 2500 | 2.8 | 15 V, 0.3 A |
Shape and Dimensions:

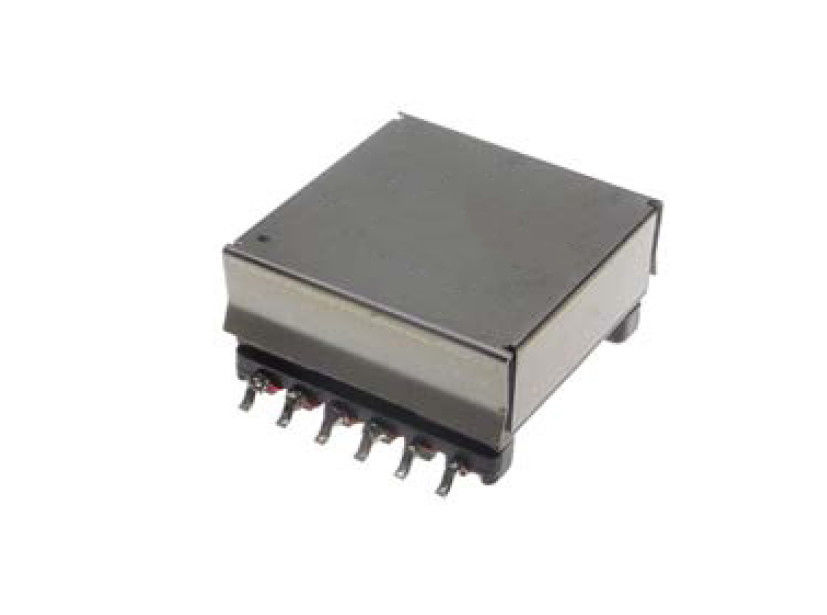

Product picture:
Surface Mount WA8417-AL Fly-Buck Transformer for Isolated Power Supply
