제품 상세정보
원래 장소: 중국 광둥성
브랜드 이름: Shareway
인증: CE UL RoHS ISO9001:2008
모델 번호: 4CMCN065R0-16H
지불과 운송 용어
최소 주문 수량: 100개
가격: Supportive
포장 세부 사항: 전체 릴 당 500 부품
배달 시간: 주식 또는 3-4 주
지불 조건: TT,페이팔
공급 능력: 5000K.PCS/월
제품명: |
자동차 HV/LV DC/DC 컨버터용 공통 모드 초크 4CMCN065R0-16H |
용법: |
자동차 HV/LV DC/DC 컨버터용 |
산: |
통로 |
제품 유형:: |
공통 모드 초크 |
작동 온도 범위: |
+85oC에게 -40oC |
인덕턴스: |
1000μH 분 |
패키지: |
테이프 / 릴 |
제품명: |
자동차 HV/LV DC/DC 컨버터용 공통 모드 초크 4CMCN065R0-16H |
용법: |
자동차 HV/LV DC/DC 컨버터용 |
산: |
통로 |
제품 유형:: |
공통 모드 초크 |
작동 온도 범위: |
+85oC에게 -40oC |
인덕턴스: |
1000μH 분 |
패키지: |
테이프 / 릴 |
Common Mode Chokes 4CMCN065R0-16H for Automotive HV/LV DC/DC converter
FEATURES
APPLICATIONS
• Automotive EV/PHV AC/DC onboard battery chargers
• Automotive HV/LV DC/DC converters
ELECTRICAL SPECIFICATIONS
| INDUCTANCE at 25ºC | L1 - 2 = L3– 4 =L5– 6= L7,8- 9,10 (140 kHz / 1 Vac/0.165A) | 1000 µH MIN |
| TURN-RATIO | N1 – 2: N3– 4: N5– 6: N7,8– 9,10 | 8:8:8:8 |
| DC RESISTANCE at 25ºC | DCR1 - 2 =DCR3– 4 = DCR5– 6 | 5.76 mΩ TYP (6.6mΩ MAX) |
| LEAKAGE INDUCTANCE | Llk1-2 (140kHz/ 1Vac; 3-4, 5-6, 7,8 – 9,10 shorted) | 2.5 µH TYP (3.5µH) |
| DIELECTRIC STRENGHT | Between Windings | 2500 Vac (50/60 Hz; 3 mA; 2 sec) |
Shape and Dimensions:

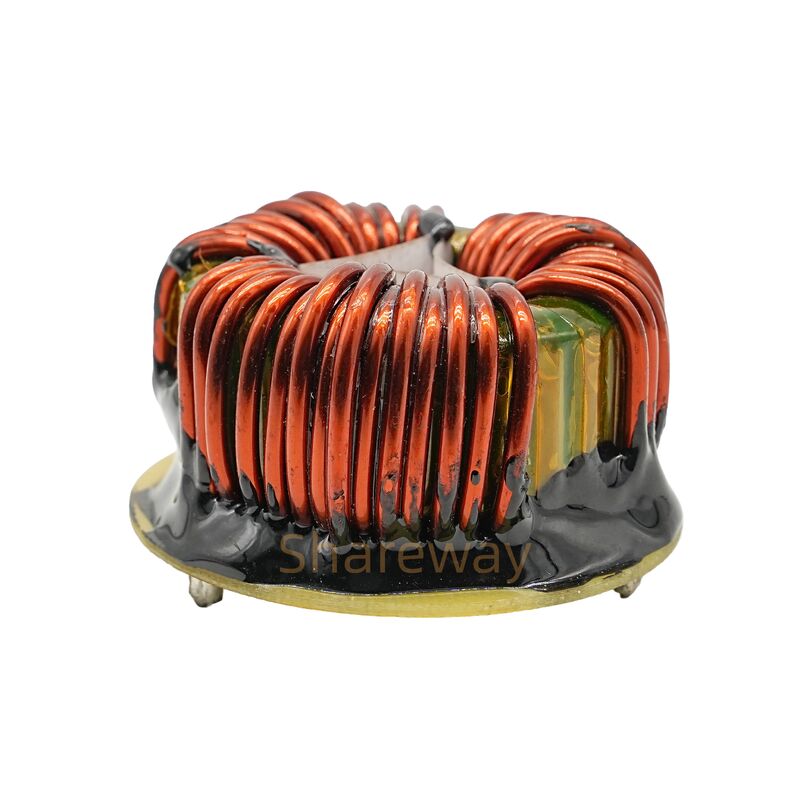

Product picture:
Common Mode Chokes 4CMCN065R0-16H for Automotive HV/LV DC/DC converter
